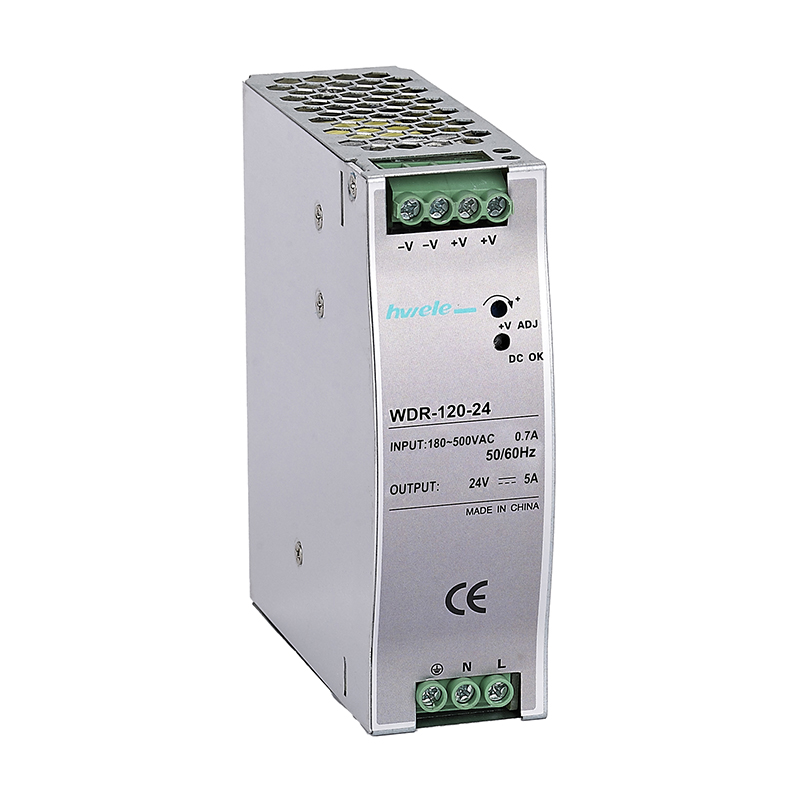

WDR-120W is an economical and slim 120W rail type power supply that meets German industrial standards. It is suitable for installation on TS-35/7.5 or TS-35/15 tracks and is designed with a width of 40mm inside the cabinet to save space.The entire series uses AC input from 180Vac to 500Vac. Designed with a metal shell, it is easy to improve the heat dissipation consumption of the machine, with a working efficiency of up to 90%. The entire series can operate in am bient temperatures ranging from -30 ℃ to 70 ℃ under air circulation conditions. It has a constant current mode overload protection function and is suitable for various inductive or capacitive load applications.
Features :
Input voltage range 180-500VAC/254-700VDC
Constant current design, suitable for complex equipment such as inductive and capacitive devices
Ultra wide operating temperature range, from as low as -30 ° C to as high as+70 ° C
Complete protection function, short circuit/overload/overvoltage
Double sided board reflow soldering process, higher reliability and consistency
100% full load aging test
DC-OK relay triggered
Application:
Industrial control system
Semiconductor manufacturing equipment
Factory automation
Mechanical and electrical equipment
Specifications
| Model | WDR-120-12 | WDR-120-24 | WDR-120-48 | |
| Output | DC output voltage | 12V | 24V | 48V |
| Rated current | 10A | 5A | 2.5A | |
| Ripple and noise (Max) | 120mVp-p | 120mVp-p | 150mVp-p | |
| Voltage adjustment range | 10.2~13.8V | 21.6~27.5V | 42~54V | |
| Start-up and rise time | 1000ms,30ms/400VAC; 1500ms,30ms/230VAC(full load) | |||
| Hold time | 30ms/230VAC; 10ms/115VAC(full load） | |||
| Input | AC input current | 180～500VAC 254~700VDC | ||
| Frequency range | 50～60Hz | |||
| Efficiency | 89% | 89% | 90% | |
| Input current | 0.7A/400VAC 1.20A/230VAC | |||
| Power factor | 0.6A/400VAC 0.65A/230VAC | |||
| Surge current | 50A | |||
| Leakage current | ＜3.5mA/400VAC | |||
| Protective features | Overload protection | Start overload protection from 105% to 150% of rated output power | ||
| Protection mode: Output voltage <” At 50%, it is in hiccup mode and can automatically recover after the abnormal load conditions are removed | ||||
| Output voltage at 50% to 100% for constant current mode, the load of an abnormal condition removed can be automatically restored | ||||
| Overvoltage protection | 14~17V | 28~33V | 55~65V | |
| Protection mode: Hiccup mode, automatically recovers after abnormal conditions are removed | ||||
| Short-circuit protection | Output positive and negative terminals short-circuited | |||
| Protection mode: Hiccup mode, automatically recovers after abnormal conditions are removed | ||||
| Function | Function (DC-OK signal) | Relay contacts (maximum): 30V / 1A resistive load | 48V without this feature | |
| Environment | Operating environment | -30℃ to +70℃ (Please refer to the load reduction curve) | ||
| Safety | Pressure resistance | I/P~O/P：1000VAC I/P~FG：1500VAC O/P~FG：500VAC | ||
| Insulation resistance | I/P~O/P, I/P~FG, O/P~FG:100M Ohms/500VDC/25℃/70%RH | |||
| Compliant Standard | EMC | GB9254 CLASS A | ||
| Safety Specifications | Refer to GB4943.1-201 | |||
| Others | Size | 40*125.2*113.5mm（W*H*D） | ||
| Packaging | 0.46kg/30pcs | |||
| Remarks | 1. Unless otherwise specified, all parameters are the measured values under the conditions of 400VAC input voltage, rated load and 25°C. 2. The ripple and noise voltages were measured with a 20MHz bandwidth oscilloscope at the end of a 12-inch twisted pair cable with 0.1μ and 47μ capacitors. 3. Accuracy: includes set error, linear adjustment rate and load adjustment rate. 4. The power supply is regarded as an independent component, but the final power supply still needs to be confirmed for electromagnetic compatibility in combination with the terminal equipment. | |||
Dimensional Drawing
Block diagram
