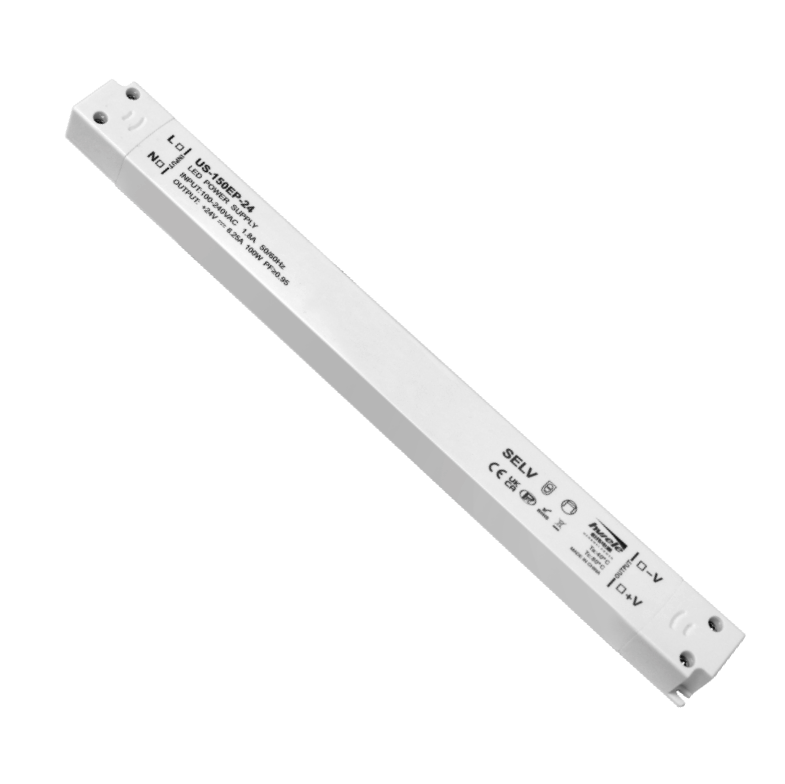

The US-150EP series is a 150W AC to DC LED power supply, featuring constant voltage and constant current
output design. It operates within an AC voltage range of 100 to 265VAC and offers 12V, 24V, 36V, and 48V
outputs. With a conversion efficiency of up to 95% and a fanless design, it can operate within a casing temper
ature range of -20℃ to +90℃ under natural air cooling. It adopts a thin and light long strip-shaped shell design,
suitable for light box or long strip-shaped lamp applications. It offers ultra-low no-load power consumption
(less than 0.5W), enabling the terminal system to easily meet international energy requirements.
Features :
It has PFC function and an AC input voltage range of 100 to 265V
Meet IEC61347 / IEC61558 / GB/T17743 laws and regulations
Constant voltage and current mode output
Protection features: short circuit/overcurrent/overvoltage/over-temperature protection, etc
Ultra-thin shell design
Class II Power supply
The no-load standby power consumption is less than 0.5W
100% full-load burn-in test· High efficiency, high life and high reliability
3-year quality guarantee
Application:
LED light strip
Decorative lighting
Cabinet lighting
Advertising light boxes and display lighting
Indirect lighting
Household equipment lighting
Specifications
| Model | US-150EP-12 | US-150EP-24 | US-150EP-36 | US-150EP-48 | |
| Output | DC output voltage | 12V | 24V | 36V | 48V |
| Rated output current | 12500mA | 6250mA | 4170mA | 3125mA | |
| Output power | 150W | 150W | 150W | 150W | |
| Constant current range | 9~12V | 16~24V | 30~36V | 40~48V | |
| Ripple and noise | 180mVp-p | 240mVp-p | 240mVp-p | 240mVp-p | |
| Voltage accuracy | ±1% | ±1% | ±1% | ±1% | |
| Linear adjustment rate | ±0.3% | ±0.3% | ±0.3% | ±0.3% | |
| Load regulation rate | ±1% | ±1% | ±1% | ±1% | |
| Start, rise, and hold times | 2000ms, 80ms/230VAC 3000ms,80ms/115VAC(At full load） | ||||
| Input | Input voltage range | 100～265VAC , 127～370VDC | |||
| Frequency range | 50～60Hz | ||||
| AC input current | 1.8A/110V，0.8A/230VAC | ||||
| Efficiency | 92% | 93% | 94% | 95% | |
| Inrush current | Cold start current: 40A/230VAC | ||||
| Leakage current | ＜0.35mA/265VAC | ||||
| Protective features | Overcurrent protection | The overcurrent limit is activated at 110% to 120% of the rated output current. | |||
| It can automatically recover after the abnormal conditions are removed | |||||
| Short-circuit protection | Protection mode: Isolation mode. Normal output can be automatically restored after abnormal conditions are removed | ||||
| Environment | Working temperature | -20℃ to +85℃ (Please refer to the load derating curve) | |||
| Working humidity | 20%～90%RH,No condensation | ||||
| Store temperature&humidity | -40℃～+85℃; 10%～95%RH,No condensation | ||||
| Seismic resistance | 10 to 500Hz, 2G for 12 minutes per cycle, X, Y, and Z axes, duration 72 minutes | ||||
| Safety | Pressure resistance | I/P~O/P：3.86KVAC | |||
| Insulation resistance | I/P~O/P：100M Ohms/500VDC/25℃/70%RH | ||||
| Safety standards | IEC 61347-1 IEC 61347-2-13 IEC 61558 GB/T17743 | ||||
| Others | Size | 334*31*22.5mm（L*W*H） | |||
| Packaging | 0.35KG/60PCS/22KG/0.97CUFT/0.028³ | ||||
| Remarks | 1. If not specified otherwise, all specifications and parameters are measured under the input of 230VAC, rated current and 25℃ ambient temperature 2. Under low input voltage conditions, derated output is required. For specific details, please refer to the static characteristic curve 3. This constant current function is only available for startup or short-term maximum load use. It should not be used for a long time. The maximum usage time at one time is 180 seconds, and there should be at least a 5-minute interval before use. | ||||
Dimensional Drawing
Block diagram
