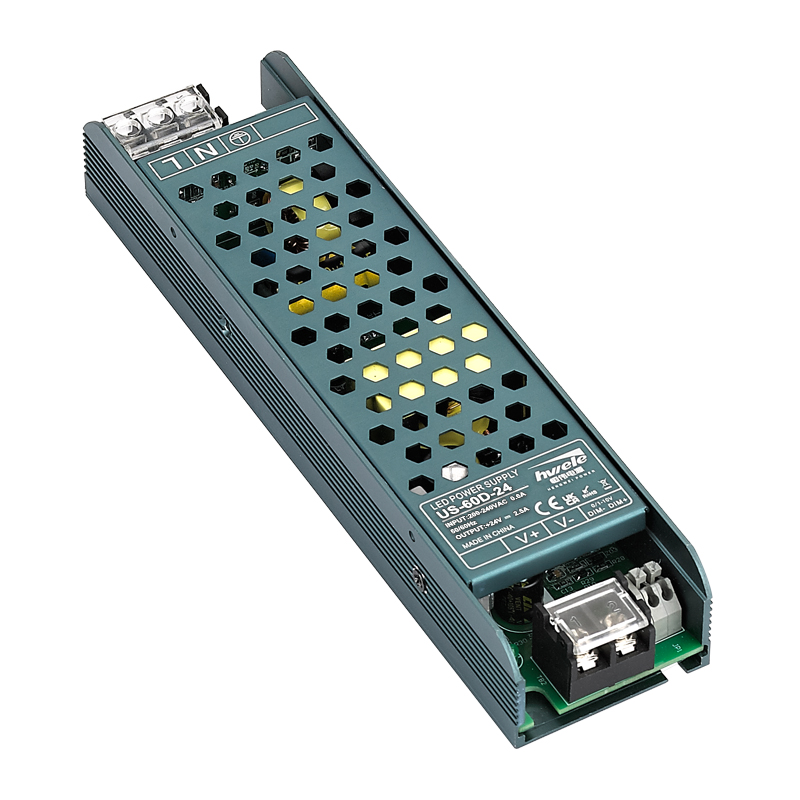

The US-60D series is a 60W single-output switching power supply with a 29mm low-profile design. The entire series offers 12V and 24V outputs, with an efficiency of up to 89%. The metal casing design gives it excellent low electromagnetic emission interference and enhances the heat dissipation capacity, enabling the US-60D to operate within a temperature range of -30°C to +50°C without a fan, and it can meet the energy-saving requirements of the new generation of LED lighting, providing a cost-effective solution for various LED lighting applications.
Features :
Design forindoor installations
TRIAC/0-1OV/1-1OV/1OV PWM/RESISTANCE DIM
Dimming range: 0~100%, LED start at 1% possible.
0-100% flicker-free, High frequency exemption level.
Over load /Over temp./ Short circuit/Over voltage protection, recover automatically.
Cooling by free air convection
100% full load burn-in test
Suitable forinternal lights application for I/IIIII.
Application:
LED strip lighting
LED illuminated text
LED mobile signage
Specifications
| Model | US-60D-12 | US-60D-24 | |
| Output | Outputvoltage | 12V | 24V |
| Outputvoltagerange | ±0.5V | ±0.5V | |
| Outputсurrent | 5.0A | 2.5A | |
| Output power | 60W | ||
| Outputpowerrange | 0~60W | ||
| Withorwithoutstrobe | Nostrobe | ||
| Dimmingrange | 0~100%,dimmingdepth:Max.1% | ||
| Ripple&Noise | ≤200mV | ≤400mV | |
| Input | Dimminginterface | TRIAC/0-10V/1-10V/10VPWM/RESISTANCE DIM | |
| Inputvoltage | 200-240Vac | ||
| Frequency | 50/60Hz | ||
| Inputсurrent | 0.6A/230Vac | ||
| Powerfactor | PF>0.55/230Vac,atfullload | ||
| Efficiency(typ.) | 88% | 89% | |
| Inrushcurrent(typ.) | Coldstart55Aat230Vac | ||
| Controlsurgecapability | L-N:2KV | ||
| Leakageсurrent | Max.0.5mA | ||
| Environment | Workingtemperature | ta:-30°C~50°Ctc:80°C | |
| Workinghumidity | 20%~90%RH,non-condensing | ||
| Storagetemp.,humidity | -40°C~+80°C;10%~95%RH | ||
| Vibration | 10~500Hz,2G12min./1cycle,periodfor72min.eachalongX,Y,Zaxes. | ||
| Protection | Overloadprotection | Protectiontype:Shutdowno/pvoltage,re–powerontorecover | |
| Overvoltage protection | Shutdowntheoutputwhennon-load voltage≥13V, re-powerontorecoverafterfault conditionis removed. | Shutdowntheoutputwhennon-load voltage≥26V, re-powerontorecoverafterfaultconditionisremoved. | |
| Overtemperature | Shutdowntheoutputwhencurrentload≥110%,autorecovers. | ||
| Shortcircuit protection | Protectiontype:1.Whenthefirst-levelshort-circuitprotectionistriggered,thefaultcanbeautomaticallyrecovered; 2.Trigger secondary short circuitprotection,faulteliminationafterpowerrecoveryagain. | ||
| Safety & EMC | Withstandvoltage | I/P-O/P:1500Vac | |
| Isolationresistance | I/P-O/P:100M2/500VDC/25°C/70%RH | ||
| Safetystandards | IEC/EN61347-1,IEC/EN61347-2-13 | ||
| EMCemission | EN55015,EN61000-3-2ClassC,IEC61000-3-3 | ||
| EMCimmunity | EN61000-4-2,3,4,5,6,8,11EN61547 | ||
| Strobeteststandard | IEEE1789 | ||
| Others | Dimension | 195*49*29(L*W*H) | |
| Weight/packing | 0.3KG/60PCS/19.2KG/1.12CUFT/0.032m³ | ||
| Note | 1.Allparametersnotspecificallymentionedaremeasuredat230VACinput,ratedloadand25°Cambienttemperature.
3.Ensurethatthepowersupplyisusedundertheratedparametersandenvironment. | ||
Dimensional Drawing
