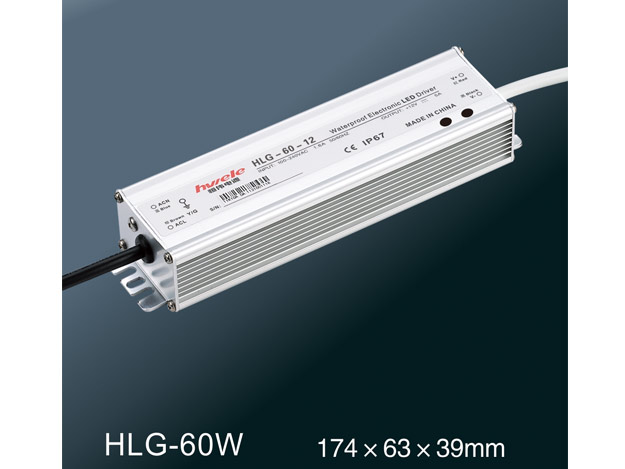

HLG-60W series Full function adjustable waterproof power supply
Features：·universal AC input
·BUilt-in power factor correction
·Protections：short circuit/over load/over voltage/over temp
·Cooling by free air convection
·OCP point adjustable through output cable or internal potentiometer
·IP67/65 design for indoor or outdoor installations
·Suitble for LED lighting and moving sign applications
·3Year warranty
|
Model |
HLG-60-12 |
HLG-60-15 |
HLG-60-24 |
HLG-60-36 |
HLG-60-48 | |
|
output |
DC voltage |
12V |
15V |
24V |
36V |
48V |
|
Constant current region |
8.4~12V |
9~15V |
14.4~24V |
21.6~36V |
28.8~48V | |
|
Rated current |
5A |
4A |
2.5A |
1.7A |
1.3A | |
|
Rated power |
60W |
60W |
60W |
61.2W |
62.4W | |
|
Ripple&noise |
150mvp-p |
150mvp-p |
150mvp-p |
33~40V |
44~53V | |
|
Voltage ADJ range |
11~13V |
13.5~17V |
22~27V |
200mvp-p |
240mvp-p | |
|
Current ADJ range |
Can be adjusted by internal potentiometer or through output cable | |||||
|
|
3~5A |
2.4~4A |
1.5~2.5A |
1~1.7A |
0.78~1.3A | |
|
input |
Voltage range |
90~264VAC，47~63HZ ，127~370VDC | ||||
|
AC current |
0.8A/115VAC，0.4A/230VAC | |||||
|
Power factor |
PF>0.95/230VAC,PF>0.98/115VAC Start overload protection | |||||
|
efficiency |
84% |
87% |
89% |
89% |
90% | |
|
Inrush current |
Cold start current 20A/115VAC，40A/230VAC | |||||
|
Leakage current |
< 0.5mA/240VAC | |||||
|
protection |
Over current |
95%~110% | ||||
|
protection type ：Constant current limiting ，auto-recovery after fault condition is removed | ||||||
|
Short circuit |
Hiccup mode，recovers automatically after fault condition is remove | |||||
|
Over voltage |
13.8~16V |
18~24V |
28~35V |
41~49V |
54~63V | |
|
protection type：Shut down o/p voltage re-power on to recover | ||||||
|
Over temperature |
95℃±10℃（RTH2） | |||||
|
protection type：Shut down o/p voltage re-power on to recover | ||||||
|
environment |
Working temp,humidity |
-20℃~+60℃，20%~90%RH | ||||
|
Storagetemp,humidity |
-40℃~+85℃，10%~95%RH non-condensing | |||||
|
Withstand vibration |
10~500HZ，2G 10min/1cycle，period for 60 minutes，each axes | |||||
|
safety |
Withstand voltage |
I/P-O/P：3KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC | ||||
|
Isolated resistance |
I/P-O/P,I/P-FG,O/P-FG：100M ohms/500VDC | |||||
|
Fitstandard |
Safety standard |
Fit UL1310 CLASS2,TUV EN61347-1,EN61347-2-13, IP65approved | ||||
|
EMC standard |
Fit EN55015，EN61000-3-2 ClassC(>60%load):EN61000-3-3 | |||||
|
others |
Dimension |
174*63*39mm (L*W*H) | ||||
|
Weight/packing |
0.75kg/20pcs/16kg/0.026m³/0.91CUFT | |||||
|
note |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. | |||||
